Plant
Three sealed quench lines. Three tempering furnaces.
Parts are hardened and quenched inside a sealed atmosphere, washed, and moved to tempering on a logged clock. Here is what runs on the floor.
- Works
- Peenya 2nd Stage, Bengaluru
- Load per charge
- 400 kg
- Process parameters
- logged every 2 min
Equipment
The equipment register.
Named as they are on the plant wall and in our records.
-
SQF1 · 2 · 3
Sealed quench furnaces
Carburise, carbonitride or harden, then drop straight into the integral oil quench without exposing parts to air. Carbon potential is held by oxygen probe.
- Units
- 3
- Load
- 400 kg per charge
- Atmosphere
- N₂ · methanol · LPG
- Carbonitriding
- + ammonia
-
TFC1 · 2 · 3
Tempering furnaces
Every hardened charge is tempered here.
- Units
- 3
- Typical temper
- 150–190 °C
-

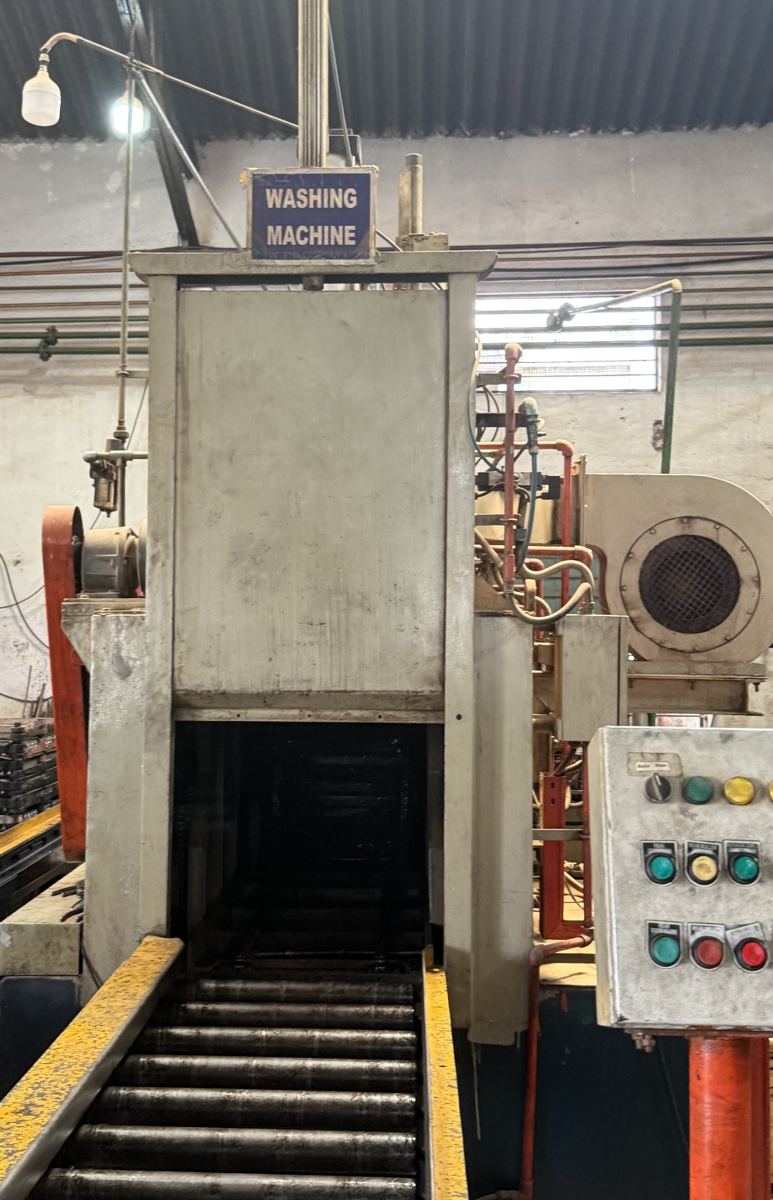

WASHpre · post
Washing
Machining oil comes off before the furnace; quench oil comes off after it. Both washes are operations on the record.
- Capacity
- 400 kg
- Pre-wash
- alkaline · 45 ± 5 °C
- Post-wash
- 50 ± 10 °C
-
LABmetallurgy
Metallurgical lab
Samples from each lot are tested here before release: hardness, case depth by microhardness survey, and microstructure.
- Micro Vickers
- case-depth traverse
- Rockwell · Vickers
- hardness testers · checked daily
- Microscope
- with image analyser
- Sample prep
- cut-off · mounting · polishing
- Gas analyser
- CO · CO₂
- Also
- refractometer · pH meter
-
DGutilities
Standby power
A 310 kVA diesel generator keeps the furnaces running through power cuts.
- Generator
- 310 kVA diesel
Next step
Will your part fit a charge?

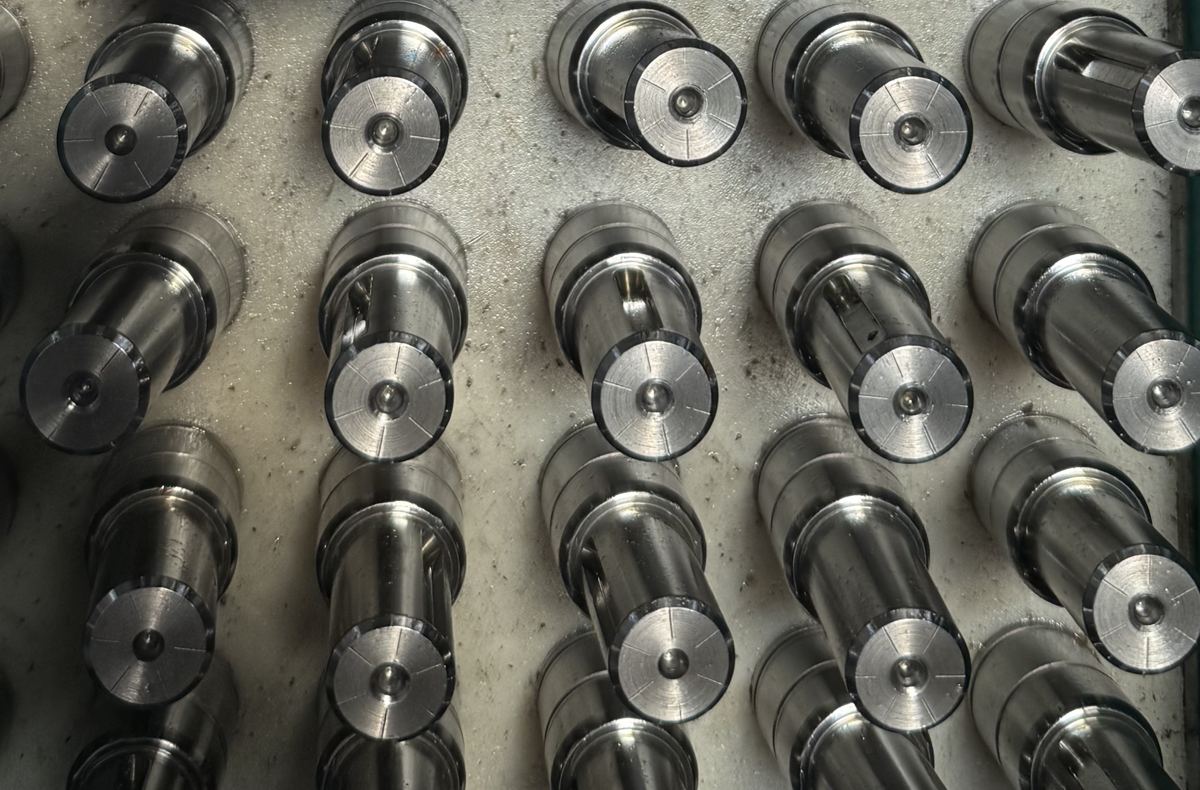

Give us part weight and quantity. We will tell you how it jigs and how many go in a 400 kg charge.
